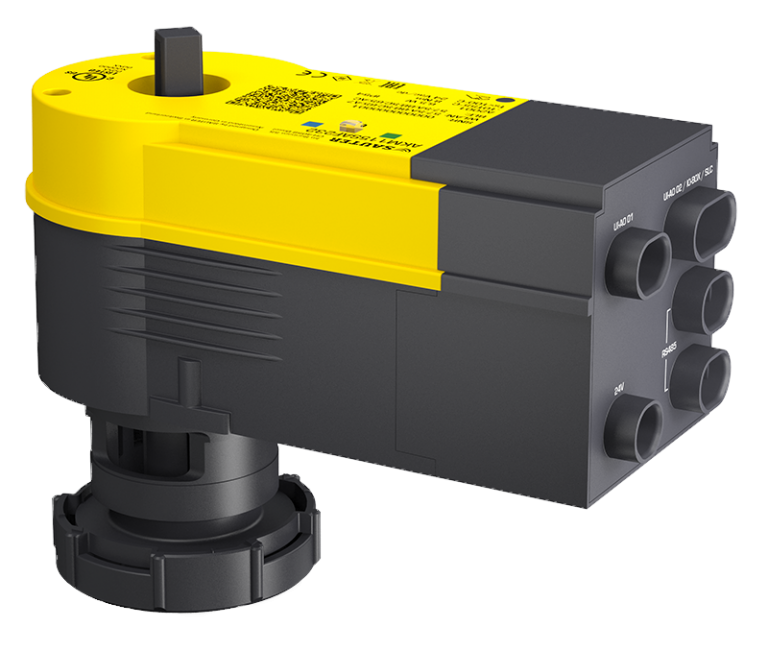

Smart Actuator for ball valve

Smart Actuator as an intelligent IoT solution for autonomous control of heating and air-conditioning applications in smart buildings

Ready-made HVAC standard applications enable efficient installation and commissioning of small systems

Applications are selected from the library via smartphone app and installed on the Smart Actuator

BACnet, Bluetooth LE and WLAN interface for flexible system integration

Commissioning, parameterisation and remote access to the system are conveniently carried out via a smartphone app

As an IoT device, the cloud connection for remote access takes place via MQTT using TLS encryption

Extensive diagnostic data from the actuator enables predictive maintenance of installations

Enables creation of Smart Actuator networks with distributed intelligence

Optionally, the Smart Actuator can be used flexibly in BA networks due to free programmability via CASE Suite

Real-time clock for calendar functions and time programmes

Two universal I/Os for connecting external sensors and actuators

Direct connection of a room operating unit

Flexibly expandable with up to two Smart Actuator SAIO 100 I/O modules for comprehensive control tasks

Pre-assembled cables, with colour- and mechanically-coded connectors, allow fast and error-free wiring

Fitting without tools using a bayonet ring made of glass-fibre reinforced plastic

BLDC motor technology enables extensive diagnostic functions

Intelligent angle of rotation adaptation and detection incl. feedback signal

Electronic, torque-dependent cut-off

Gear unit can be disengaged for manual adjustment

For operating the 2- and 3-way ball valves VKR, VKRA, BKR, BKRA, VKAI, VKAA, BKLI, BKTI and BKTA, as well as 6-way ball valve B2KL
