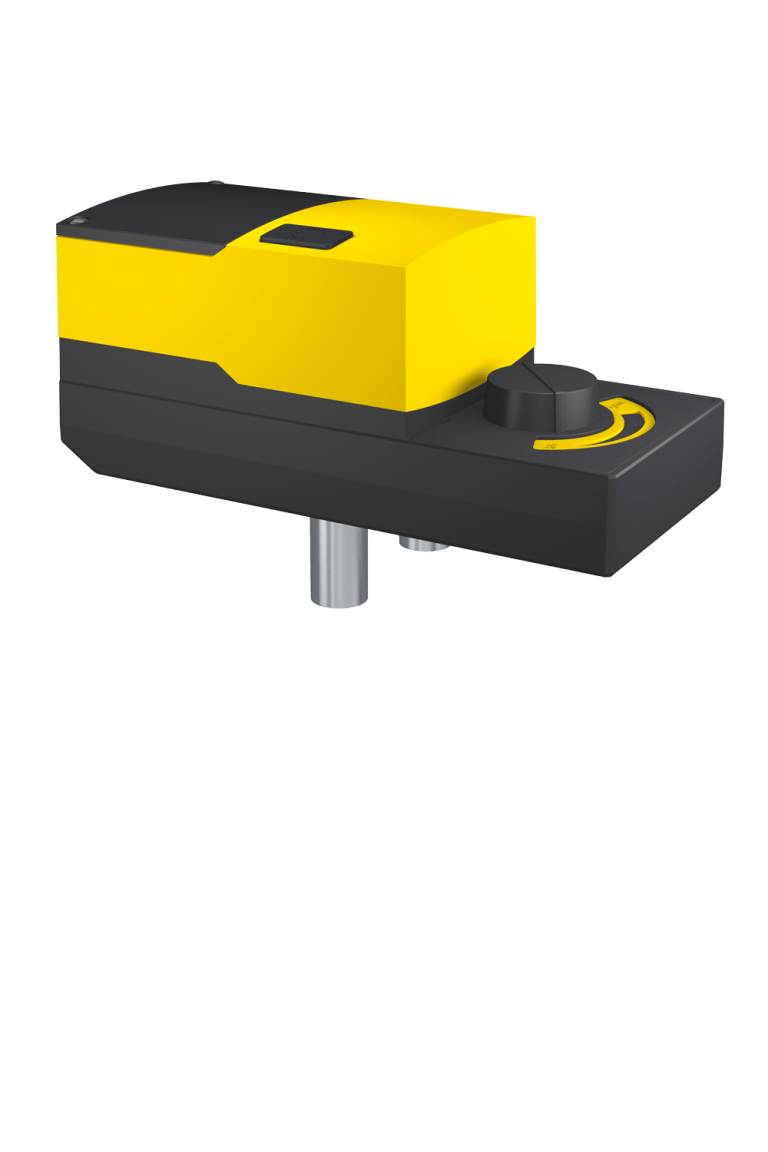

Rotary actuator with positioner
ADM 322S
How energy efficiency is improved
Best operating convenience, precision activation and high energy efficiency with minimal operating noise.
Vlastnosti
-
For operating control units such as control valves, butterfly valves etc.
-
For controllers with a continuous output
-
15 Nm nominal torque and holding torque
-
ADM322SF122: Synchronous motor with electronic control unit and load-dependent cut-off
-
ADM322SF152: Brushless DC motor with SUT (SAUTER Universal Technology) electronic control unit and electronic, load-dependent cut-off
-
Low operating noise
-
Automatic recognition of applied control signal
-
With the built-in absolute distance measurement system, the position is always maintained in the case of power failure
-
The direction of operation, running time and control signal (voltage/current) can be adjusted via coding switches
-
High-speed variant ADM322SF152 with 30 s or 60 s for angle of rotation 90°
-
Gear unit can be disengaged for manual adjustment
-
Easy re-initialisation using a coding switch
-
Electrical parallel operation of up to five actuators possible
-
Numerous adapters enable the unit to be fitted onto defined non-SAUTER control valves
-
ADM322SF152: Integrated forced operation can be set via coding switches (with selectable direction of operation)
-
Maintenance-free gearbox made of plastic and steel, and gearbox base-plates made of steel
-
Mounting columns made of aluminium
