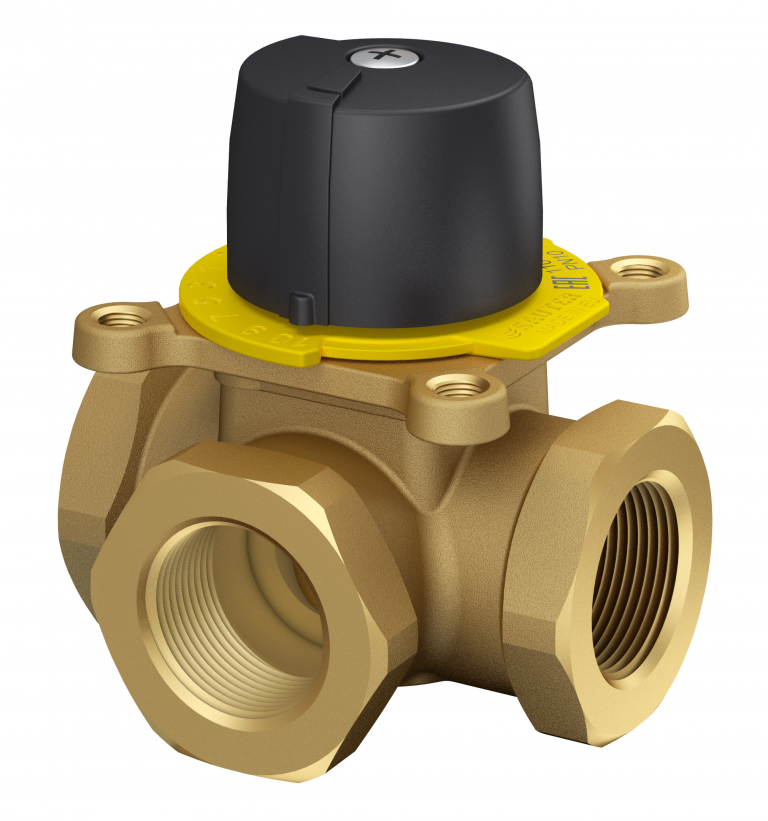

Control valve with threaded connection, PN 10
M3R, M4R
How energy efficiency is improved
Supply from both sides and the linear characteristic enable energy-efficient working
Vlastnosti
-
M3R: 3-way valves with nominal diameters DN 15…50
-
M4R: 4-way valves with nominal diameters DN 20…50
-
Used in combination with the ADM 322 and ASM 105, 115, 124 motorised actuators
-
Manual adjustment by means of lever and end stops
-
Body, cover, front gate and spindle made of brass
Údajové listy
Pokyny pre montáž
Vyhlásenie o materiáloch a životnom prostredí
Iné dokumenty
brožúry
M3R, M4R: Control valve with threaded connection, PN 10
pdf : 1 MB
pdf
0510390002 ... 0510390005, 0510240013
pdf : 2 MB
pdf
M3R, M4R
pdf : 4 MB
pdf
M3R, M4R: Control valve with threaded connection, PN 10
PDF : 74 KB
PDF
Poster valves and actuators - 2023
pdf : 1 MB
pdf
Valves and actuators
pdf : 3 MB
pdf
