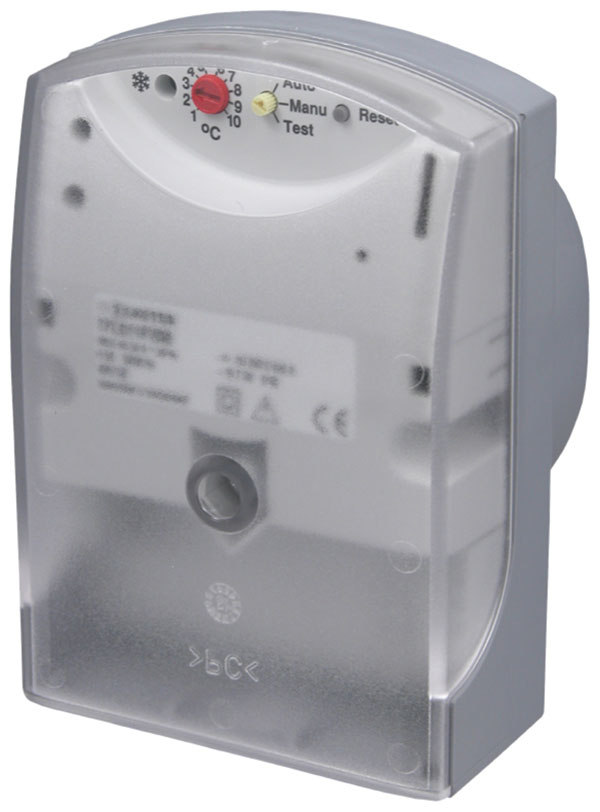

Continuous frost monitor with capillary sensor
TFL 611
How energy efficiency is improved
Demand-controlled, large-area monitoring of system components with active capillary sensor
Vlastnosti
-
Records the lowest temperature that occurs for a length of at least 250 mm at any position along the capillary tube
-
Used on air side in ventilation and air conditioning units where protective measures must be taken against freezing
-
Active capillary sensor for measuring the lowest temperatures in the range 0…15 °C
-
Vapour-filled capillary tube and diaphragm system with inductive system of measurement
-
Setting range 1…10 °C
-
Start-up function
-
LED and 7-segment display
-
Self-monitoring of sensor line
Údajové listy
Pokyny pre montáž
brožúry
TFL 611: Continuous frost monitor with capillary sensor
pdf : 745 KB
pdf
TFL611
pdf : 864 KB
pdf
Flyer 2-Point Controllers and Sensors
pdf : 1 MB
pdf
