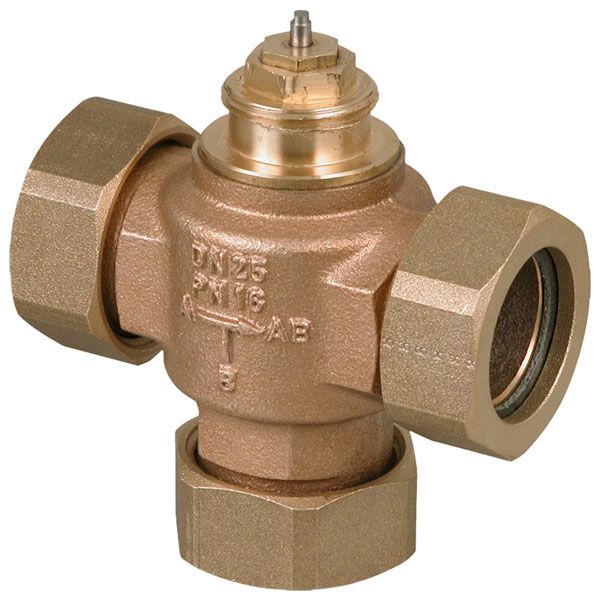

3-way unit valve, PN 16
BXL
How energy efficiency is improved
Linear mixture for energy-efficient regulation
Vlastnosti
-
Ideally suited as a control valve for AXF 217S, AXM 217(S), AXS 315S and AXT 301 unit valve actuators
-
Valve with male thread as per DIN EN ISO 228-1, class A
-
Control passage A–AB open when the spindle is moved in
-
Used as a control valve
-
Valve body made of gunmetal
-
Plug with EPDM soft seal
-
Stainless-steel spindle
-
Stuffing box with double O-ring seal
-
Version with cap nut and flat seal
Údajové listy
Pokyny pre montáž
Iné dokumenty
brožúry
BXL: Three-way small (unit) valve
pdf : 2 MB
pdf
AXT211
pdf : 1 MB
pdf
VXL, BXL
pdf : 124 KB
pdf
AXM217, AXM217S
pdf : 633 KB
pdf
Poster valves and actuators - 2023
pdf : 1 MB
pdf
Valves and actuators
pdf : 3 MB
pdf
