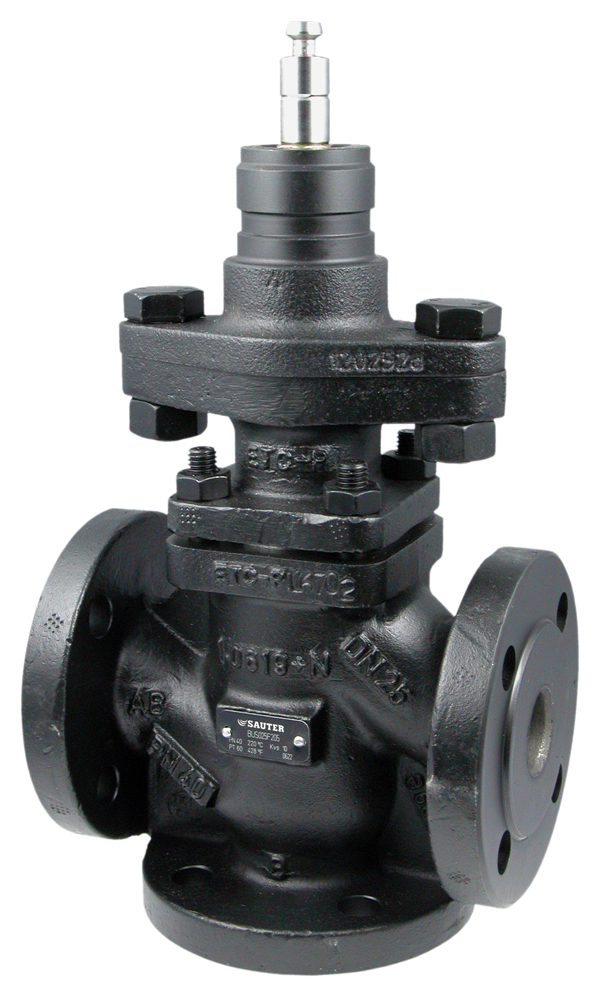

3-way flanged valve, PN 40 (pn.)

BUS

3-way flanged valve, PN 40 (pn.)

How energy efficiency is improved

Efficiency means precise and reliable control


Vlastnosti

  • Continuous control of cold/warm/hot water in closed circuits

  • In combination with AVP 242 to 244 actuators as control unit

  • Water quality as per VDI 2035

  • Valve with flange connection as per EN 1092-2, seal form B

  • Regulating valve, free of silicone grease, matt black

  • Not suitable for drinking water or potentially explosive atmospheres

  • The valve is closed when the spindle is moved out

  • For use only as a control valve

  • Valve body made of cast steel

  • Stainless-steel seat and plug

  • Stainless-steel spindle

  • Maintenance-free stuffing box, made of stainless steel, with spring-loaded PTFE washer up to 220°C, with graphite seal up to 260 °C
